Wavlink WL-UG69PD2 Pro USB-C Dual 4K Universal Laptop Docking Station 100w PD Dock

Wavlink WL-UG69PD2 Pro USB-C Dual 4K Universal Laptop Docking Station 100w PD Dock

Condition: This item is brand new and unused, still factory sealed in the original retail box with all original accessories.

Genuine Wavlink UK stock with UK power cable.

Part/Model Number: WL-UG69PD2 Pro

Warranty: This item is sold with the Manufacturer warranty.

Item details/specification.

Customized for You
Easy to take anywhere with the compact and portable design, 15 ports on one dock brings users the enjoyment of fastness, steadiness and effectiveness.

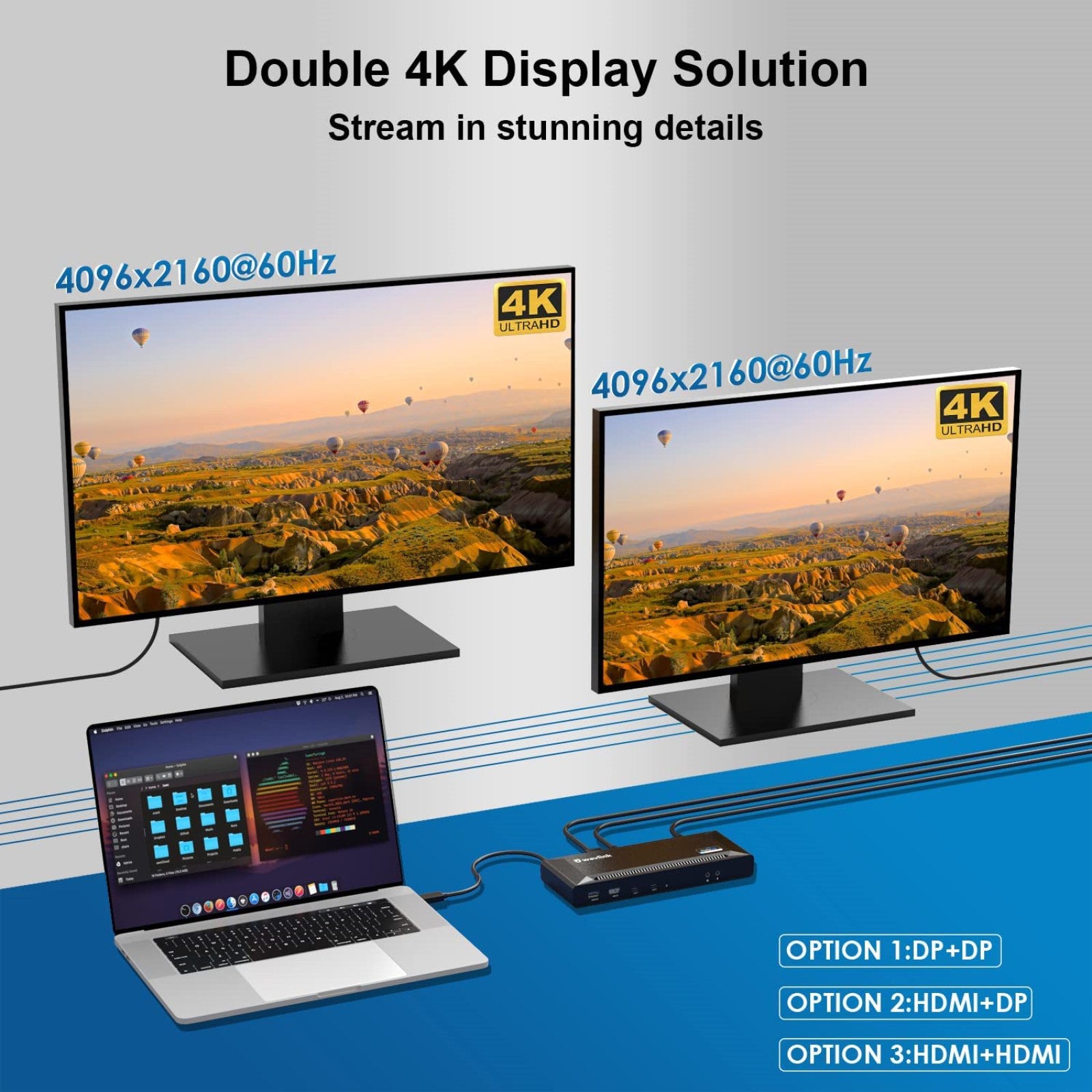

Multitask with Dual 4K Displays
Connect HDMI screens or DisplayPort screens to corresponding ports respectively; then you can view HD images on one or two 4K screens (4096×2160@60Hz) so as to extent screens, play video games, watch clips or work on important projects and so on.

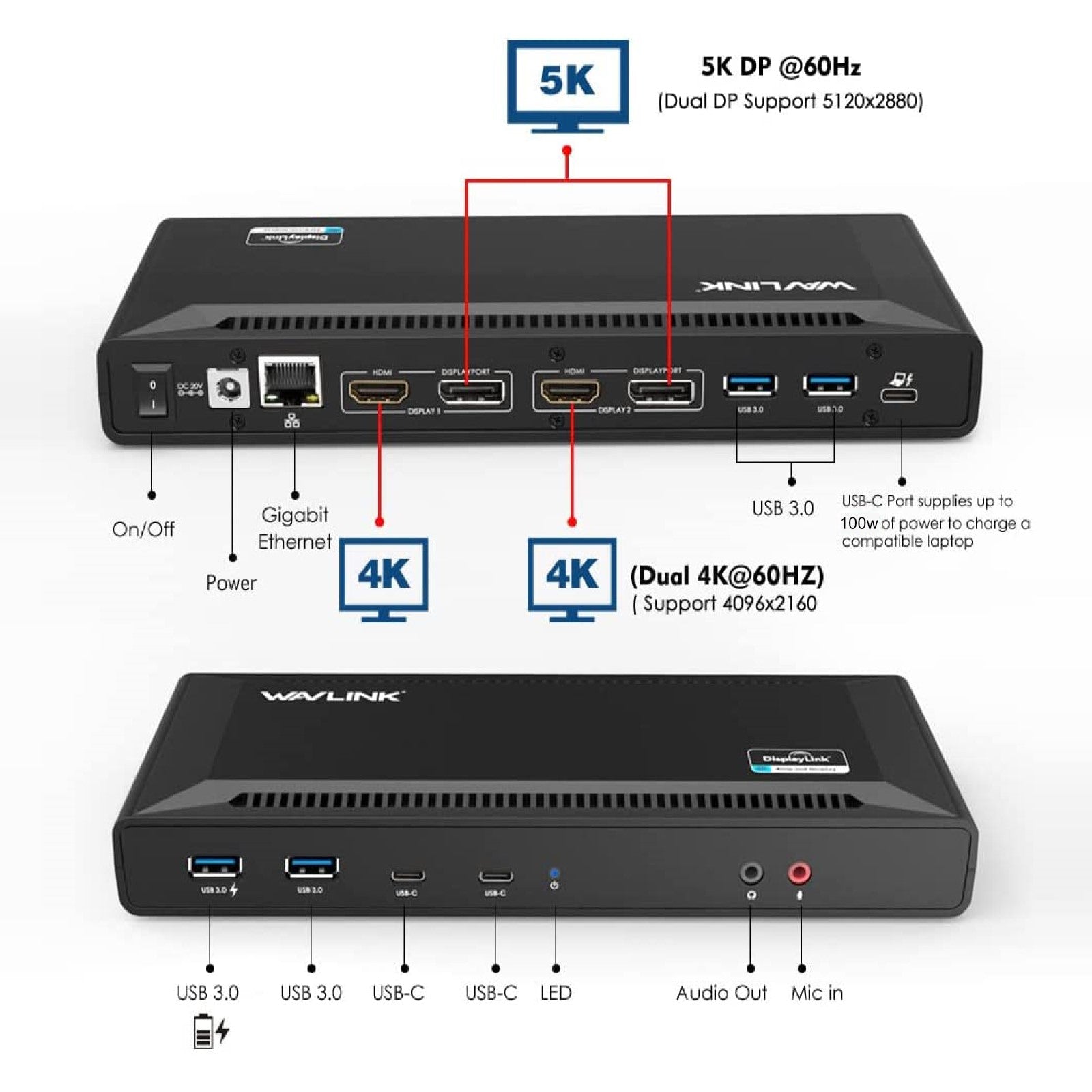

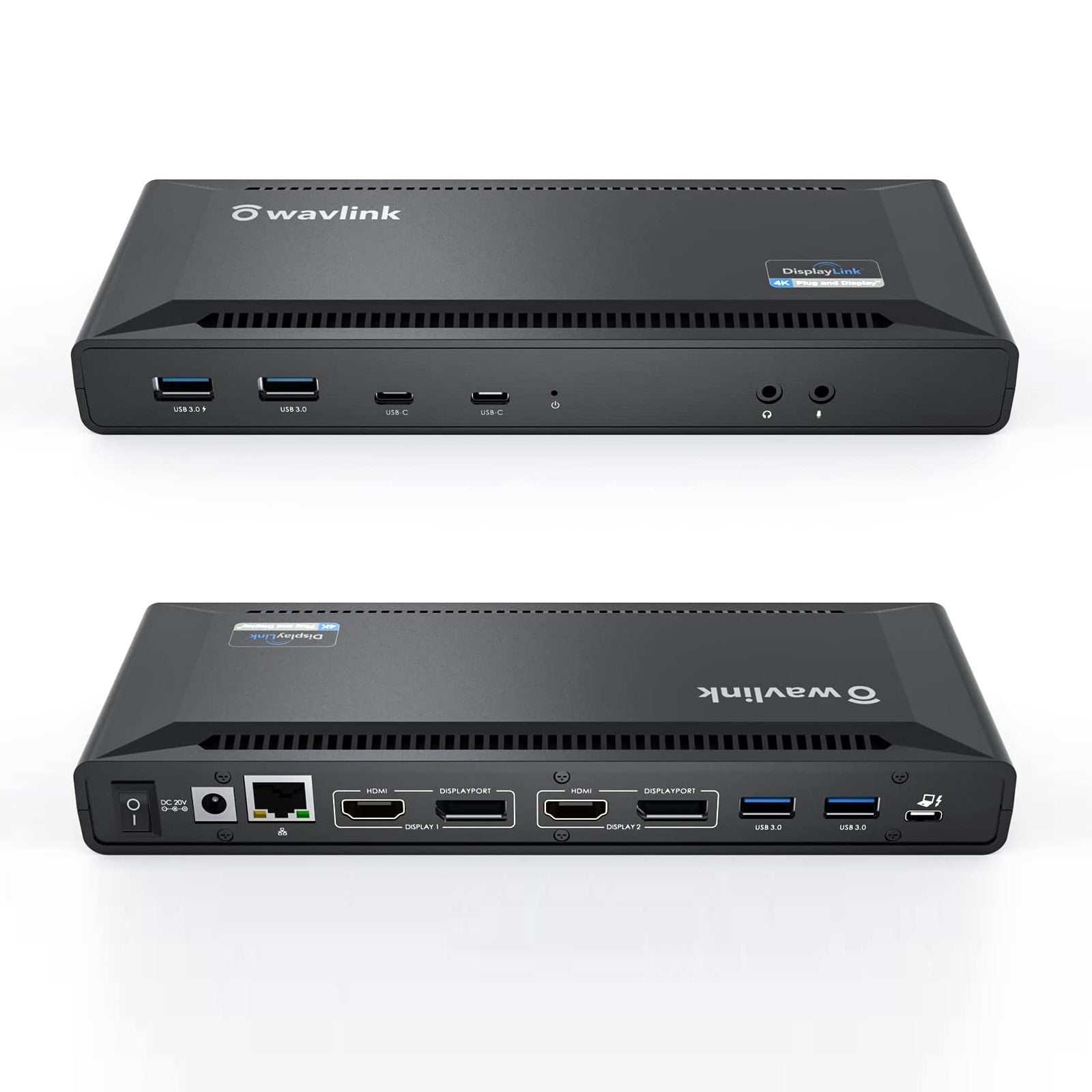

Front Panel I/O
- Two USB 3.0 (5Gbps) Type-A ports
- Two USB-C (5Gbps) ports
- One 3.5mm Audio output port
- One 3.5mm Mic input port

Rear Panel I/O
- ON/OFF power switch
- One Gigabit Ethernet port
- Power port
- Two HDMI video output ports
- Two DISPLAYPORT video output ports
- One USB-C port (Connect to laptop)
- Two USB 3.0 (5Gbps) Type-A ports

USB Power Delivery
Plug your dock into a nearby socket, then connect your dock and laptop. Then this dock is turned into a power socket for charging your laptop when necessary.

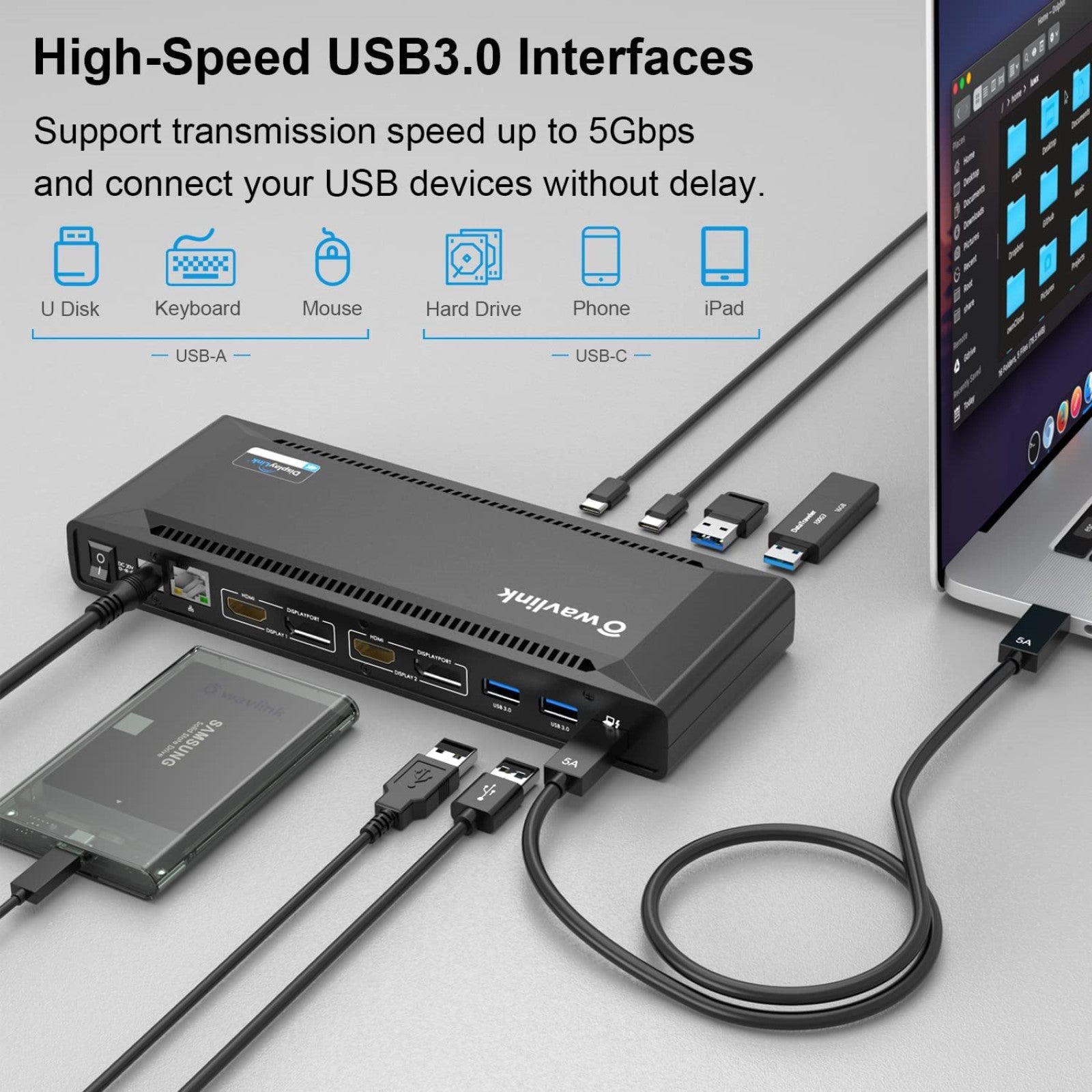

USB 3.0 Ports
In contrast with traditional USB ports, USB 3.0 port is bi-directional that reads and writes data simultaneously with maximum speed of 5Gbps, thus it is time-saving and efficient for data transmission.

Gigabit Ethernet
Connect to your laptop, PC, game consoles and so on with RJ45 Gigabit Ethernet, your multitasking online will be amazingly sped up compared to regular Ethernet port. Theoretically speaking, it supports up to 1 gigabit/second (1000Mbps), thus bandwidth capacity would be largely enhanced.

Audio and Mic
There are two separate ports on the dock for audio out and mic in, you can enjoy singing songs or having a conference with your voice heard by connecting a microphone to Mic In port; on the other hand, if you want to listen to audio files, you can insert your headset to audio out port.

One Dock for All
The WAVLINK UG69PD2 Pro allows you to easily connect various devices at the same time, helping you keep your workspace organized and efficient at all times.

ABOUT THIS ITEM

• The docking station provides USB-C or USB 3.0 link from PC or Mac to dual 4K displays with either HDMI or DisplayPort, Gigabit Ethernet, audio input/output & four USB 3.0 ports and two USB C ports.
• Supports display resolutions up to 5K (5120 x 2880@60Hz) when using dual Displayport on single monitor or Dual 4K Displayport / Dual 4K HDMI / 4K HDMI +4K DisplayPort (3840 x 2160) @60Hz. (Note: For Displayport make sure your monitor supports DP 1.2 and monitor settings are configured to use DP 1.2)
• This docking station compatible with Windows 11, 10, 8.x, and 7 and macOS 10.14 or later. Plug and play driver installation via Windows Update; manual driver installation on macOS. Linux/Unix not supported. Suggested use: web and productivity software; not recommended: gaming, video playback, 2D/3D graphic tools. Not supported: some non-DisplayLink adapters, HDCP-will not playback encrypted or copy-protected content.
• Up to 100W of USB C Power Delivery function: If your device ( laptop ) supports USB C Power Delivery (USB PD), this docking station supports up to 100 watts (100W) of charging to your host device. This means you won't need to take out the charger that came with your laptop when you're at your desk, on supported hosts. The one USB-C cable from the dock is all you'll need to stay charged and connect all your devices.
• What in the box:1 x USB C Dual 4K Universal Dock station - 1 x 130W(20V/5A) power adapter - 1 x USB Type C to C Cable - 1 x USB Type C to A cable - 1 x Driver download card - 1 x Instruction Manual

FEATURES

• USB3.1 Type-C and Standard-A connectors compatible both Type-C Laptop
  130Watt Power Adapter supports 100W upstream Laptop Charging, and 30W power for all downstream devices
• Build in USB 3.0 GPU, Plug and Display Certified by DisplayLink
• 2 x DisplayPort++ (Dual Mode DisplayPort 1.2) and 2 x HDMI (Version 2.0) support resolution up to dual (4K)4096 x 2160@60Hz/(5k)5120x1440@60hz
• Support resolution 5K/5120 x 2880p60 when dual dp ports are connected to the 5k monitor

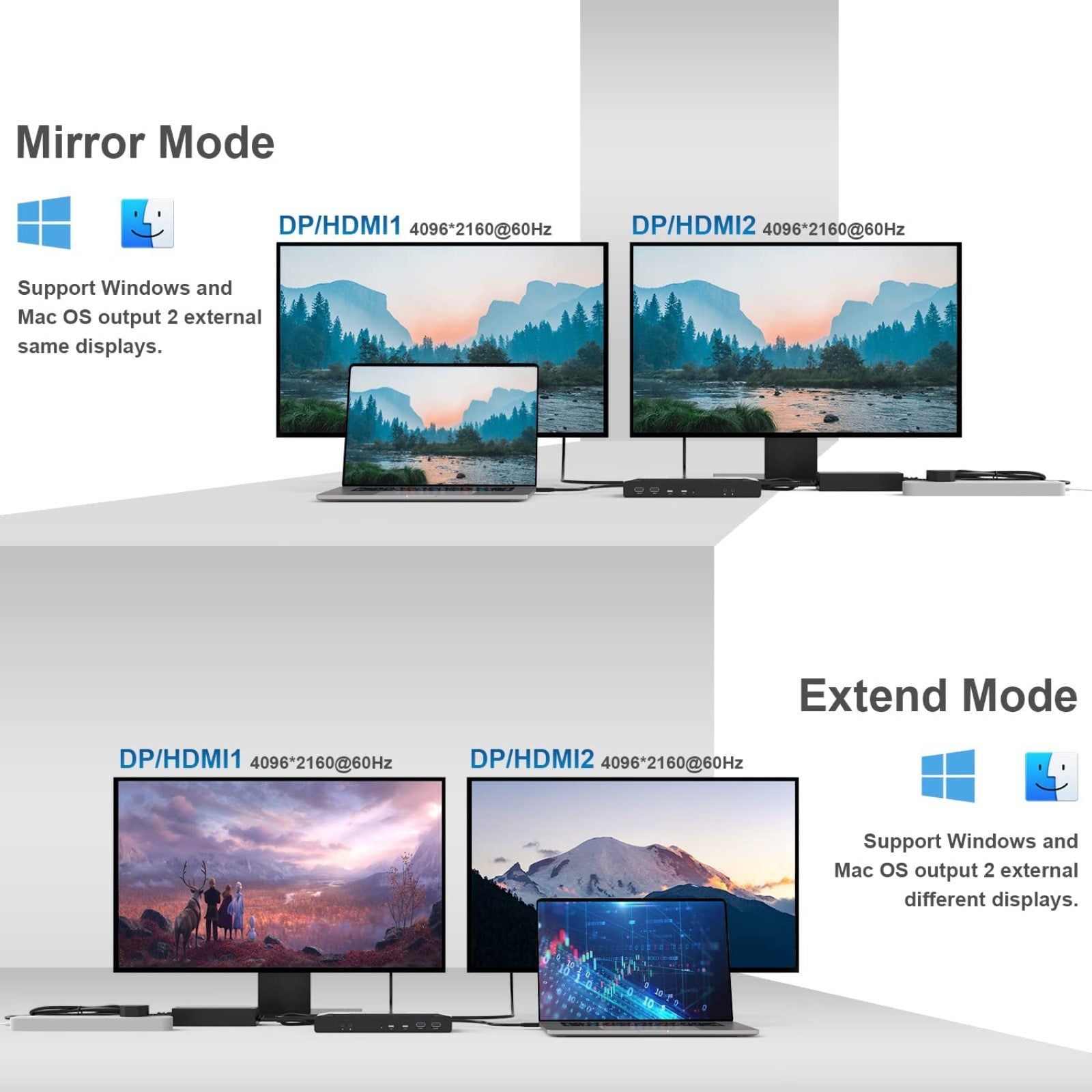

• Support Extend and Mirror Video Mode. 5.1 Channel surround-sound through Display Port interface
• RJ-45 Gigabit Ethernet network backward compatible with 10/100 Ethernet
• 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone

SPECIFICATIONS

• Model: UG69PD2 Pro
• Ports: 2 x DisplayPort, 2 x HDMI, 4 x USB-A 3.0, 2 x Type-C, 1 x USB-C (Connect to laptop), 1 x Audio Output Jack, 1 x Microphone Input Jack, 1 x RJ45 Gigabit Ethernet, 1 x DC Power Jack Port
• Buttons: 1 x Power ON/OFF Switch
• LEDs: Blue Power LED
• Power Supply: DC20V / 5A
• Dimensions: 220mm x 91mm x 28mm (L x W x H)
• Housing Material: ABS
• Shell Colour: Black
• Operating System Support: Windows 11, 10, 8.x, and 7 and macOS 10.14 or later

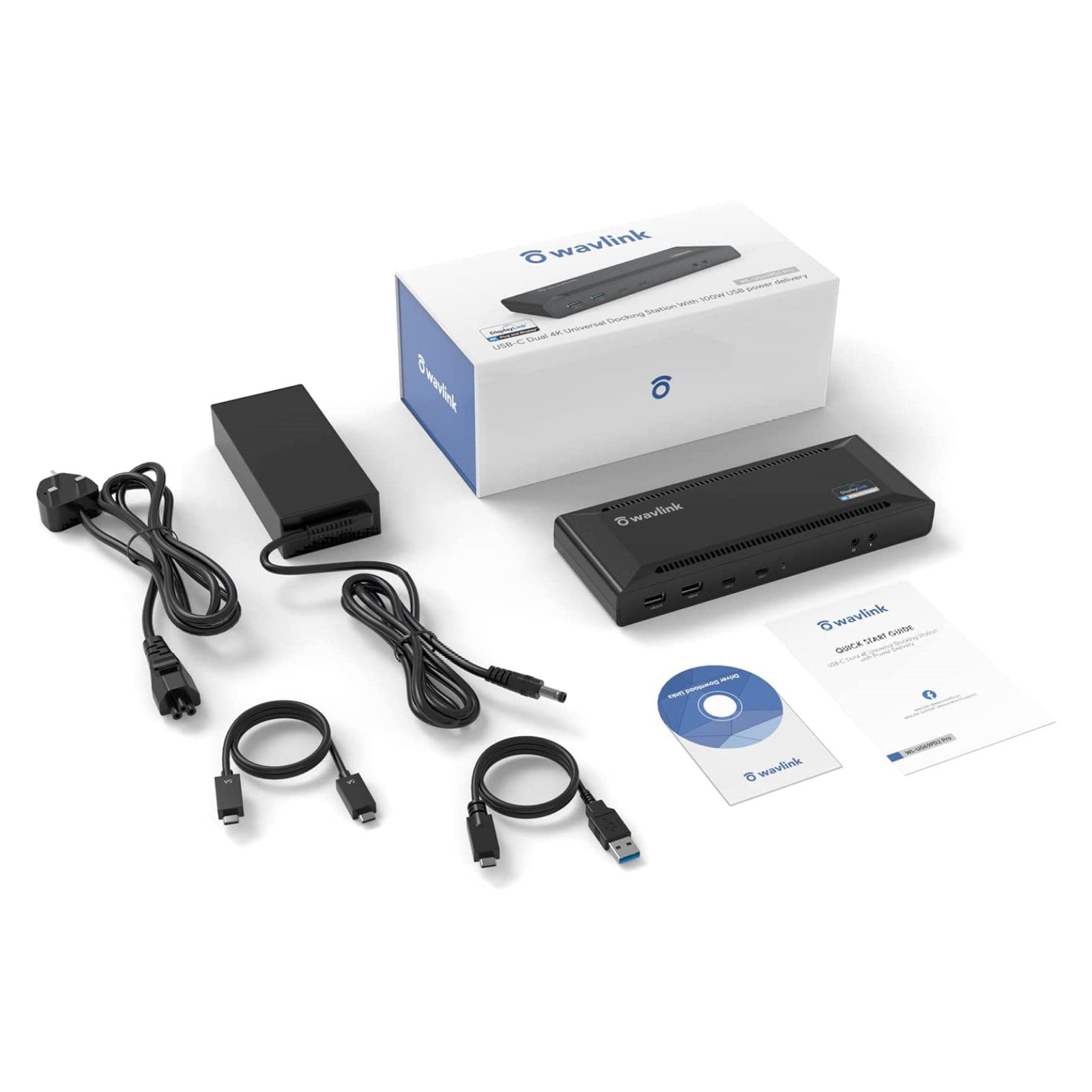

IN THE BOX

• 1 x USB-C Universal Docking Station
• 1 x USB 3.0 C to C Cable
• 1 x USB 3.0 A to C Cable
• 1 x DC20V/5A Power Adapter
• 1 x UK Mains Power Cable
• 1 x User Manual

WORKING STANDARDS

• Hub running at USB 3.0 speed
• Upstream Charging 100Watt
• DisplayPort or HDMI resolution Max. 4096 x 2160@60Hz (Supports 5K / 5120 x 2880p60 when dual DP ports are connected to a 5K monitor)
• Ethernet running at Gigabit (1000 Mbps)
• 2.0 Channel Audio
